Extreme Ejection Bungee Launcher

Year: 2015
Manufacturer: Extreme
Name: Ejection Bungee Launcher
Model: Portable
Condition: Very Good
Pricing: $20,000

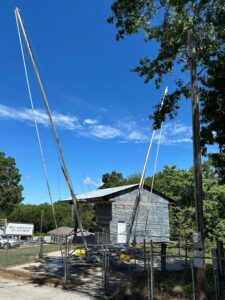

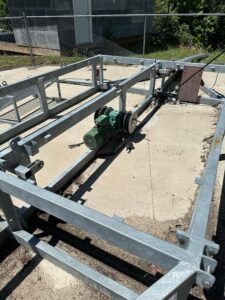

Details: Includes attraction, new bungee cords and ropes, motor, harness, and transport case.  Attractions operates with 220V motor with a double pulley system, the bungy ropes are pulled in and a quick release system which lets the user catapult riders up to 50 feet in the air. Specifications Space required = 30 feet X 20 feet Height jump up to : 50 feet Voltage: 220V Aluminum pole height : 45 feet Structure: M.S metal , with aluminum checkered plate, all bolts are tempered and tested, Motor: Geared motor, heavy duty of 2 HP, 3 phase Climbing rope: 12 mm – doubled , 3,000 kg breaking point Full body harness (Tear-off breaking point 1,600 kg (600kgs) Elastics: 12 mm- with sleeves on both sides. 14 ropes used in a set Ride capacity: 20 to 25 riders per hour Carabiners and pulleys – Breaking point 22K
